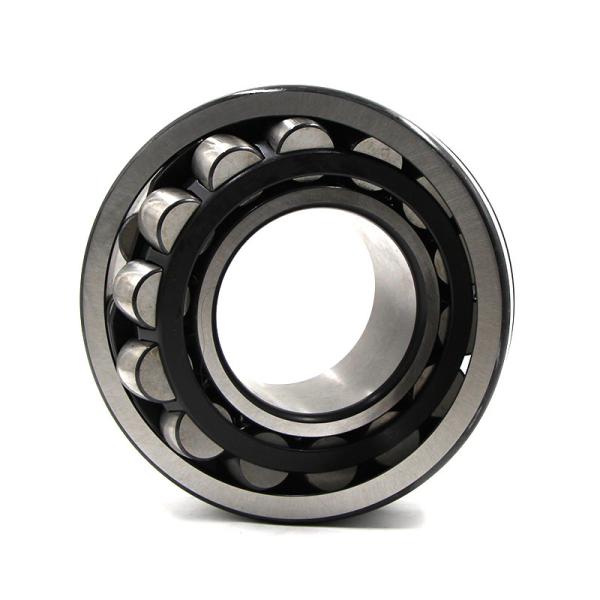

23128E1A.M.C3 FAG Spherical Roller Bearing (X-Life) 23128EAS.M.C3 Size 140x225x68mm Weight 10.2 Kgs

1 . Spherical Roller Bearing

The 23128E1A.M.C3 FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

The 23128E1A.M.C3 FAG is an X-life type bearing. X-life bearings provide better performance than normal spherical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal spherical roller bearings.

2. Specification of 23128E1A.M.C3 Self-aliging roller bearing

• BrandFAG
• Item Number23128E1A.M.C3
• CategorySpherical Roller Bearing

Weight and Dimensions

• nner (d) MM140
• Outer (D) MM225
• Width (B) MM68
• Weight (kg)10.2
• Product Properties
• BoreC - Cylindrical Bore
• Lubrication EnhancementW33 - Lubrication Groove and 3 Holes
• SealNo Seal
• Cage TypeM - Brass Cage
• Radial Internal PlayC3 Internal Play (Higher than Cn)
• PrecisionStandard Precision
• Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
• Vibrating Screen ExecutionNon Vibrating Screen Execution

Suffix description

• E1Increased Capacity Design
• AModified Internal Construction
• MSolid Brass Cage, Guided By Rollers
• C3Internal Clearance Larger Than Normal

4 . Packaging
1 ) Commercial Taper Roller Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2 ) Industrial Taper Roller Bearings packaging: a):plastic tube + carton + pallet; b). plastic bag +kraft paper + carton + pallet
3 ) According to the requirement of customer of Taper Roller Bearings

5 . Delivery
1 ) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2 ) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3 ) More than 200 KGS, we will send by sea. ( Cheapest, but long time )

6 . Main Application

The papemaking machinery, speed reducer, railway vehicle axle, rolling mill gear box bearing, rolling mill roller, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial deceleration machine, vertical set-contained spherical roller bearing.
